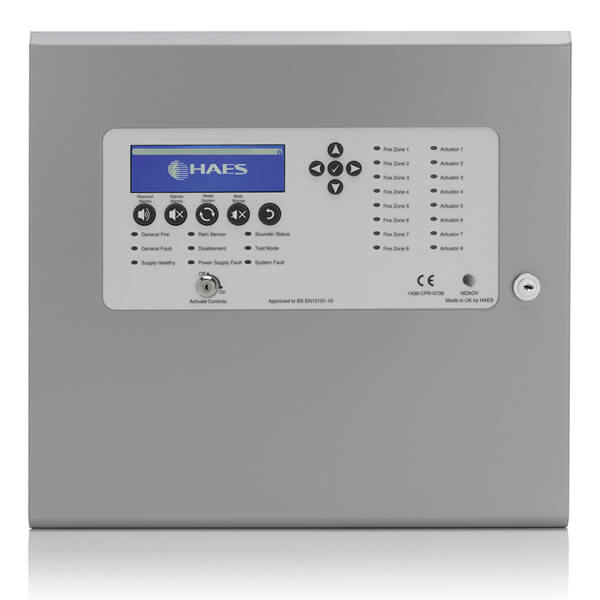

Our AOV smoke ventilation control panel is designed to control 24vdc actuators or magnets, which are typically used in stairwells, corridors or smoke extract shafts. This helps to automatically prevent smoke build-up to keep emergency exits clear during a fire via an Automatic Opening Vent (AOV), including vents, windows and roof lights.

The integrated PSU version has a choice of 3, 5 and 10 amps to suit the size of small, medium and larger loads, in a panel that enables simple control of your smoke ventilation system with a battery backup capability. Available with or without the 2 x 12Ah 12v VRLA batteries (10A version takes 2 x 17Ah 12v VRLA batteries), these will then ensure the actuators and detectors can still operate even if mains power is lost.

AOV Operation

Vent controls and indicators are provided on the front of the panel with a large graphical display and control inputs to accept signals from remote contacts, smoke detectors and manual controls. Easy to program, the panel features a fireman’s control switch and a thermostat input for ventilation mode to allow vents to open in 10% steps.

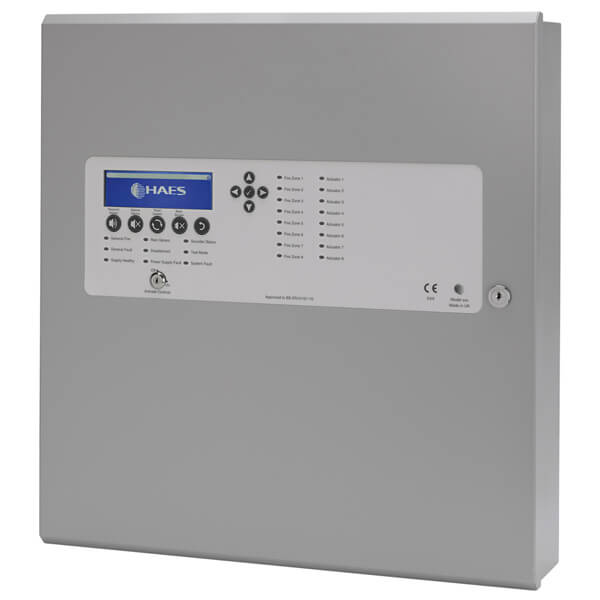

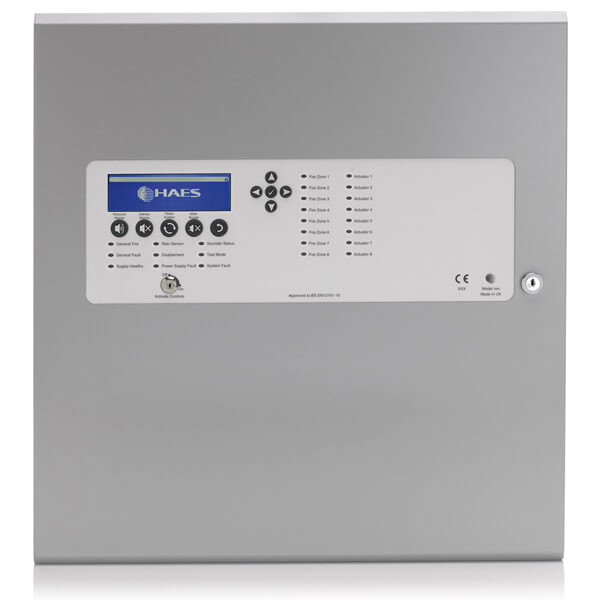

Manufactured by Haes, the 3A AOV control panel is available with either a single or two-zone version (two-zone extendable to four), while the 5A and 10A version are 2 zone but extendable up to 4 and 8 zones respectively. Each zone should include a conventional smoke detector with a base (we recommend the Apollo 65 Series) and yellow manual call point, while the Twin Wire mode allows AV devices to be connected to the detector circuit

Selecting The Correct Panel

The optional input/output card allows for optional support for Rain Sensor and PIR inputs for environmental control and trap injury protection, as well as 0/10v inputs and outputs to allow control interfacing with BMS systems and positional control Act output.

If you require additional zones for the compatible control panels, please contact us for a quote for additional zone cards. Be sure to check the data sheets below for the full specifications of each unit before purchasing.

Please Note: These are made to order so are exempt from our usual next working day service. Please expect delivery within 10 working days of ordering.

Product Data Sheets

PDF downloadAOV Control Panel - 3A - Single Zone Data Sheet

PDF downloadAOV Control Panel - 3A - Two Zone Data Sheet

PDF downloadAOV Control Panel - 5A - Two Zone Data Sheet

PDF downloadAOV Control Panel - 10A - Two Zone Data Sheet

  • Integral PSU (3A, 5A or 10A)
  • Large graphical display
  • Easy to program
  • Single and Two Detector Zones available
  • Switch inputs to control a wide combination of vents
  • All inputs and actuator outputs monitored for Short and Open Circuit
  • Fireman’s control switch inputs
  • Thermostat input - Ventilation mode. Vents openable in 10% steps
  • Optional support for Rain sensor, PIR and BMS control
  • Space for two batteries
  • CE Certified
  • Manufactured by Haes
