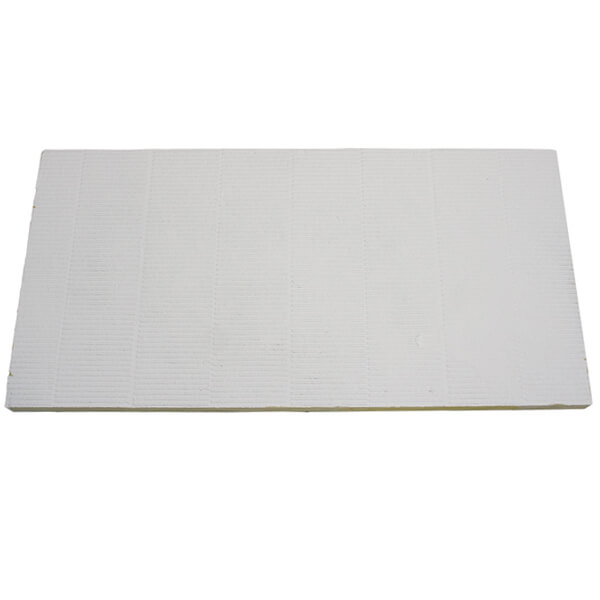

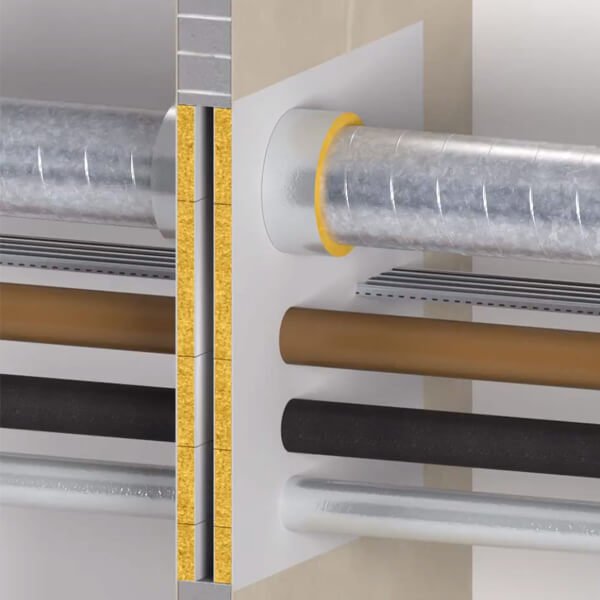

The fire rated board, aka Fire Batts, is simple and very quick to install to provide up to four hours fire and smoke protection. Perfect for openings in fire rated walls and floors where openings are formed to allow the installation of multiple building services, it also maintains sound insulation with a sound reduction of up to 55 decibels.

Available in two sizes of thickness- 50mm and 60mm - the intumescent board is permanently flexible which is perfect for accommodating movements during a fire and smaller movements in the construction and must be installed with the Intumescent Acrylic Sealant (sold seperately).

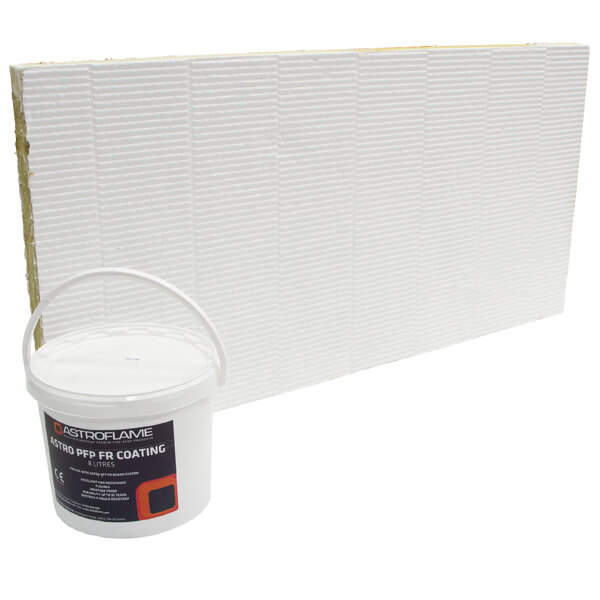

Suitable for use in unlimited lengths in walls with heights of up to 1200mm and in floors with widths up to 800mm. Each measuring 600 x 1200mm, the PFP FR board consists of a high-density stone wool core it's over-coated with fire board coating which prevents to passage of hot gasses to reduce heat conduction. Best installed using PFP acrylic mastic, raw edges should also be coated with the fire board coating which can also be used to create a smooth surface.

Halogen-free with added fungicides, once fully cured the board resists UV, humidity and frost, the fire resistant batts can simply be cut down to size to fit the aperture. CE certified, the fire resistant boards are independently tested according to EN ISO 10140-2:2010. This replaces our hugely-popular fire batts as a better-performing, low-priced alternative.



Product Data Sheets

PDF download Fire Resistant Board Data Sheet

PDF download Fire Resistant Board SDS Sheet

PDF download Fire Resistant Board Technical Data Sheet


  • 50mm and 60mm thickness
  • Classified for all types of constructions with or without building service penetrations
  • Size 1200mm x 600mm has density of 160Kgm
  • Tested to EN ISO 10140-2:2010
  • Up to 4-hour fire resistance
  • CE Certified
  • Manufactured by Astroflame
Customer reviews
There are no comments yet. Be the first to leave a comment
Please sign in to add review

Fire Rated Board (PFP)

    • Model number:
      AFPFPB50
    • £26.70 ex. VAT
      £32.04 inc. VAT
      SAVE £6.46 (19%)

    • Never Beaten on Price
    • 100-day Free Returns
    • Spend £50 + vat for Free Delivery Next working day if ordered before 2pm
