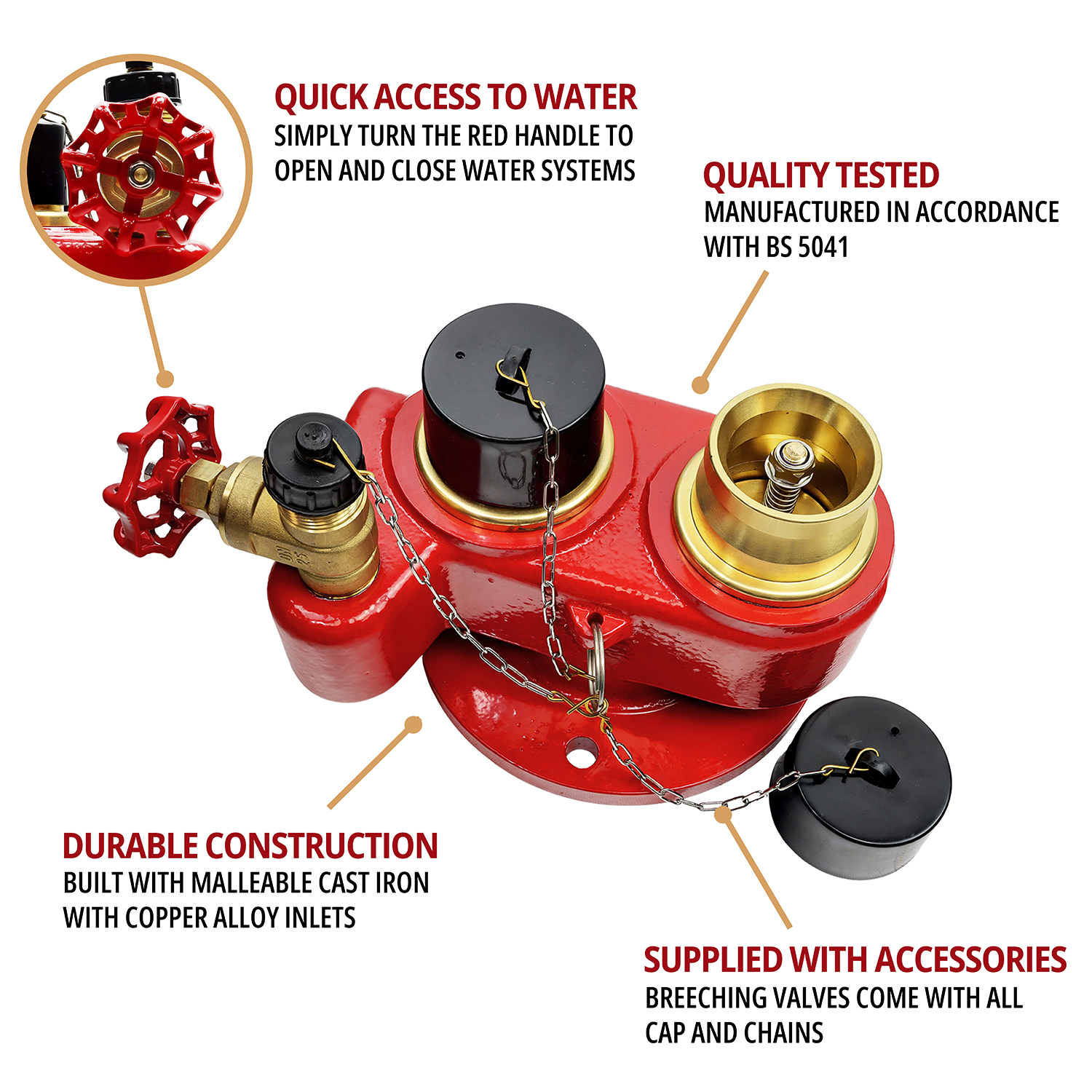

Our 2-way inlet breeching valve is an essential part of your dry riser system and is manufactured in accordance with BS5041. Installed at ground level at the outside of your building, this ensures it is easily accessible to the fire brigade or personnel during a fire emergency. Normally dry, it means your dry riser system can easily be connected to the water supply to provide water throughout the building to tackle flames. Suitable for installation in either the vertical or horizontal position, it comes complete with caps and chains too.

Manufactured for Vigil Products, our standard inlet breeching valve has 2x BS336 2½” instantaneous male non-return valve inlets, a 100mm PN16 or Table D/E outlet flange and a 1” drain valve. This inlet breeching valve is constructed of cast iron with copper alloy inlet, which is extremely durable, and has a working pressure of 10 bar and tested to a pressure of 20 bar.

Do I Need A PN16 or Table D/E Flange Fitting?

There is a really easy way of telling the difference between PN16 flanges and Table D/E flanges for inlet breeching valves. PN16 have 4 bolt holes around the flange, while Table D/E only have 8 holes, so take note of the outlet you'll be fitting this to in order to figure our which version you need.

  • Standard 2-Way with PN16 Outlet Flange

    • Compliant with BS5041
    • 2x BS336 2½” instantaneous male non-return valve inlets
    • 1x 100mm PN16 outlet flange
    • Working Pressure: 10 bar
    • Testing Pressure: 20 bar
    • Body Construction: Malleable cast iron
    • Inlet Construction: Copper Alloy
    • Manufactured for Vigil Products


  • Standard 2-Way with Table D/E Outlet Flange

    • Compliant with BS5041
    • 2x BS336 2½” instantaneous male non-return valve inlets
    • 1x 100mm Table D/E outlet flange
    • Working Pressure: 10 bar
    • Testing Pressure: 20 bar
    • Body Construction: Malleable cast iron
    • Inlet Construction: Copper Alloy
    • Manufactured for Vigil Products
Customer reviews
There are no comments yet. Be the first to leave a comment
Please sign in to add review

2-Way Inlet Breeching Valve

    • Model number:
      VP-DRB2
    • £99.97 ex. VAT
      £119.96 inc. VAT
      SAVE £138.40 (58%)

    • Never Beaten on Price
